17. Electrical triphase motor wiring diagrams

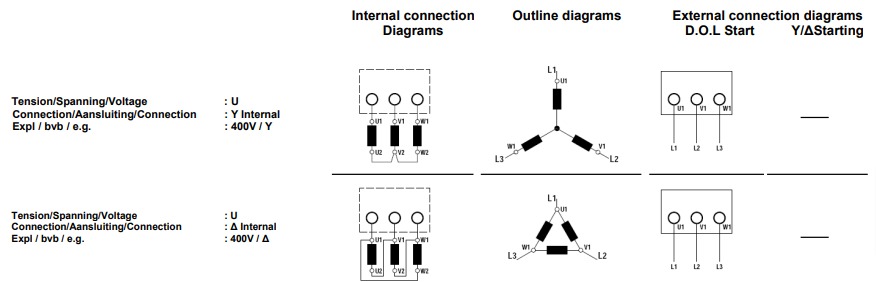

Single voltage 3 Terminals

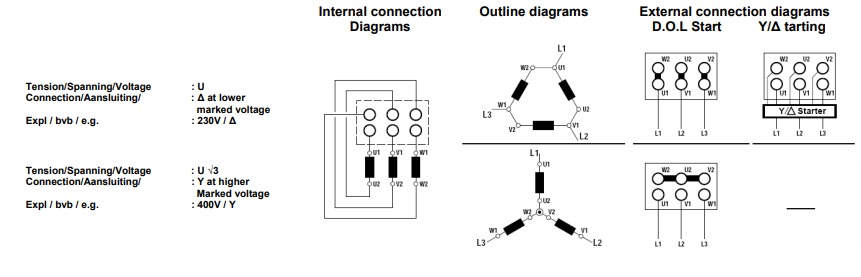

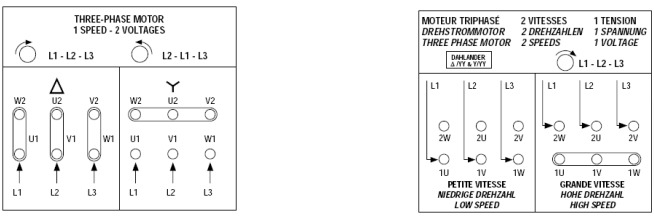

Dual voltage 6 Terminal Connection Y,∆

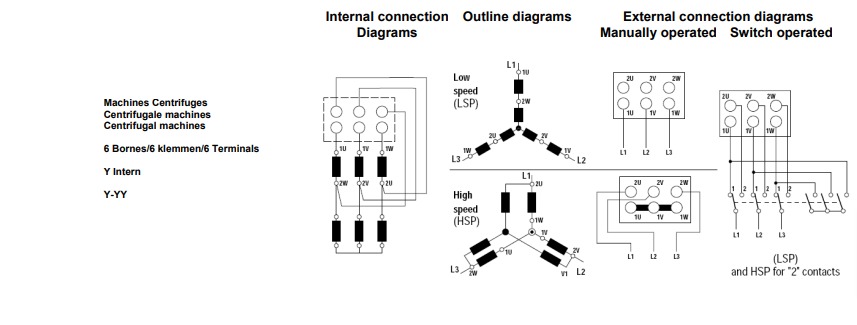

2 speed motor DALHANDER or PAM

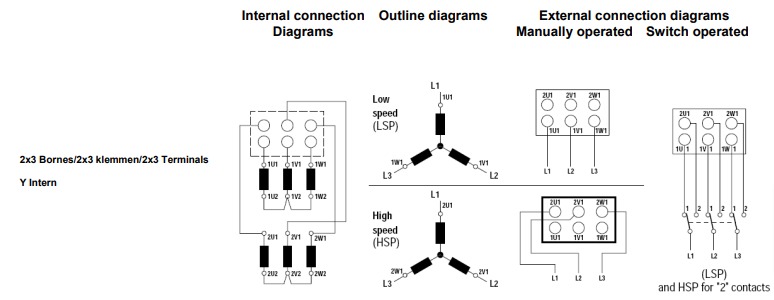

2 speed motor 2 separate windings
